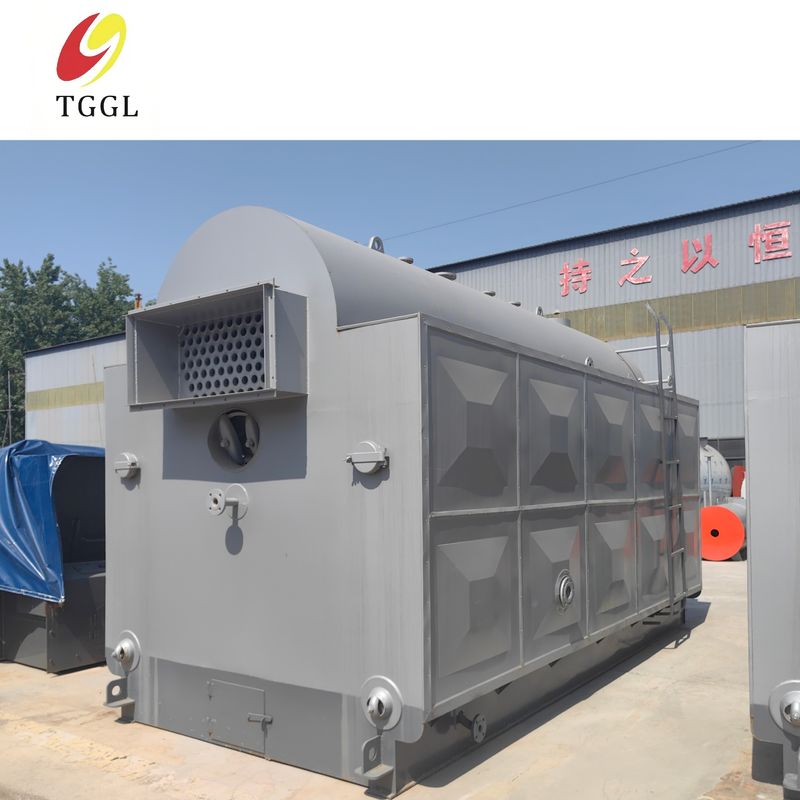

DZH Series Hand Fired Coal Boiler 89% Efficiency Coal Fired Biomass Steam Boiler

DZH Series Hand Fired Coal Boiler 89% Efficiency Coal Fired Biomass Steam Boiler

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 7800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Structural Form: Horizontal Warranty: 12 Months
Pressure: 0.7、1.0、1.25、1.6Mpa Capacity: 0.5-4t/h
Type: Coal Fired Boiler Control System: PLC
Mode Of Transport: Sea And Land Transport Applicable Industry: Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
High Light:

DZH series hand fired coal boiler

,

Coal Fired Biomass Steam Boiler

,

Hand Fired Coal Boiler 89% Efficiency

Product Description

Product Description:

DZH type hand burning coal burning biomass industrial boiler is a mature and advanced product of our company, an energy-saving and environmentally efficient product, can burn formed biomass fuel, but also pure coal or mixed coal and formed biomass fuel. Compared with the traditional coal boiler, it not only has wide fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, so it has been widely used.



Features:

(1) Stable operation, convenient adjustment, sufficient output. It has 110% overload capacity.
(2) The threaded smoke pipe is used to strengthen heat transfer, improve the heat transfer coefficient and thermal efficiency, because the smoke has a disturbance in the pipe, the smoke pipe is not easy to accumulate ash, and plays the role of self-cleaning.
(3) The high efficiency and energy saving furnace arch with heat-resistant concrete cast as a whole is used in the furnace, which improves the ignition conditions of coal and expands the adaptability of coal.

Technical Parameters:

Parameter Value
Warranty 12 Months
Pressure 0.7,1.0,1.25,1.6Mpa
Type Coal Fired Boiler
Control System PLC
Capacity 0.5-4t/h
Fuel Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells
Mode of transport Sea And Land Transport
Efficiency 89%
Applicable industry Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Installation Pry Mounting, Quick Mounting
Steam temperature 170,184,194,204℃


Applications:

The Taiko DZH coal fired biomass steam boiler is designed for industrial biomass and coal fired applications. The boiler is CE, EAC, SGS, ISO19001, ISO24001, ISO45001 certified, making it a reliable and safe choice for your business. The pressure can be adjusted between 0.7, 1.0, 1.25 and 1.6Mpa. The boiler is suitable for burning biomass pellets, wood chips, bamboo chips, wood chips, straw, palm shells and other fuels. Commonly used in chemical industry, construction, food processing, paper making, printing and dyeing, breeding, wine and other industries



Support and Services:

Our technical support staff can provide you with the following services:

Assist in the installation, operation and maintenance of coal-fired boilers
Troubleshoot and resolve operational issues
Provide safety advice and recommendations
Answer questions and inquiries
Provide technical assistance with repairs and modifications
Provide product updates and upgrades
Please feel free to contact us if you need help with the operation manuals for coal-fired boilers. Our knowledgeable and experienced staff will be happy to assist you.



FAQ:

Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.



Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.



Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
