DZH Series Coal Fired Boiler Operation Manual 89% Efficiency Biomass Steam Boilers

DZH Series Coal Fired Boiler Operation Manual 89% Efficiency Biomass Steam Boilers

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 7800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Capacity: 0.5-4t/h Warranty: 12 Months
Temperature: 170、184、194、204 Mode Of Transport: Sea And Land Transport
Efficiency: 89% Structural Form: Horizontal
Fuel: Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells Type: Coal Fired Boiler
High Light:

Biomass Coal Fired Boiler 89% Efficiency


89% Efficiency Biomass Steam Boilers


DZH series Biomass Steam Boilers

Product Description

PLC control system for biomass industrial steam boiler paper industry

Product Description:

The new DZH series boiler is a single cylinder-vertical water-fire tube shell boiler, and the combustion equipment is a movable grate. The water cooling wall on the left and right sides of the furnace is the radiant heating surface, the two wings of the furnace are the convection heating surface, the threaded smoke pipe convection heating surface is arranged in the boiler drum, the front and back arches are made of heat-resistant concrete cast and rammed as a whole, and the outer side of the boiler main engine is the three-dimensional protection plate shell. By burning formed biomass fuel, it can also be pure coal or mixed coal and formed biomass fuel. Compared with the traditional coal boiler, it not only has wide fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, so it has been widely used.



1) Due to the arrangement of the rising pipe row at the lower part of the drum, the dead water area at the bottom of the drum is eliminated, so that the mud is not easy to deposit, and the high temperature area of the drum can be cooled well to prevent the lower part of the boiler shell from bulging.
(2) The use of high efficiency heat transfer threaded smoke pipe, to obtain enhanced heat transfer effect, to achieve the boiler heating, pressure boost characteristics, improve the thermal efficiency of the boiler.
(3) Compact structure, compared with the same type of boiler, small size, saving boiler room infrastructure investment.
(4) The high efficiency and energy saving furnace arch with heat-resistant concrete cast as a whole is used in the furnace, which improves the ignition conditions of coal and expands the adaptability of coal.

Technical Parameters:

Parameter Value
Pressure 0.7,1.0,1.25,1.6Mpa
Capacity 0.5-4t/h
Temperature 170,184,194,204
Fuel Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells
Control System PLC
Type Coal Fired Boiler
Efficiency 89%
Applicable industry Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Warranty 12 Months
Installation Pry Mounting, Quick Mounting
Mode of transport Sea and land transport


DZH type coal-fired industrial steam boiler is designed for high efficiency, energy saving and cost-effective industrial boilers. Passed CE, EAC, SGS, ISO19001, ISO24001, ISO45001 and other certifications. This operating manual is applicable to all coal-fired steam boilers manufactured in Thailand. The fuel of DZH coal-fired industrial steam boiler can be biomass particles, wood chips, bamboo chips, wood chips, straw, palm shells and so on. The temperature can be adjusted to 170, 184, 194, 204, suitable for chemical industry, light industry, textile, culture, building materials, printing and dyeing, paper making, food processing industry, wood processing industry, medicine and other industries.


Support and Services:

We provide technical support and services for our coal-fired boilers to ensure the best possible experience for our customers. Our team of technicians is available to answer questions, provide troubleshooting assistance, and help with any issues that may arise.

We are committed to providing the highest quality products and services. If you have any questions, comments or concerns, please do not hesitate to contact us. We look forward to helping you!



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

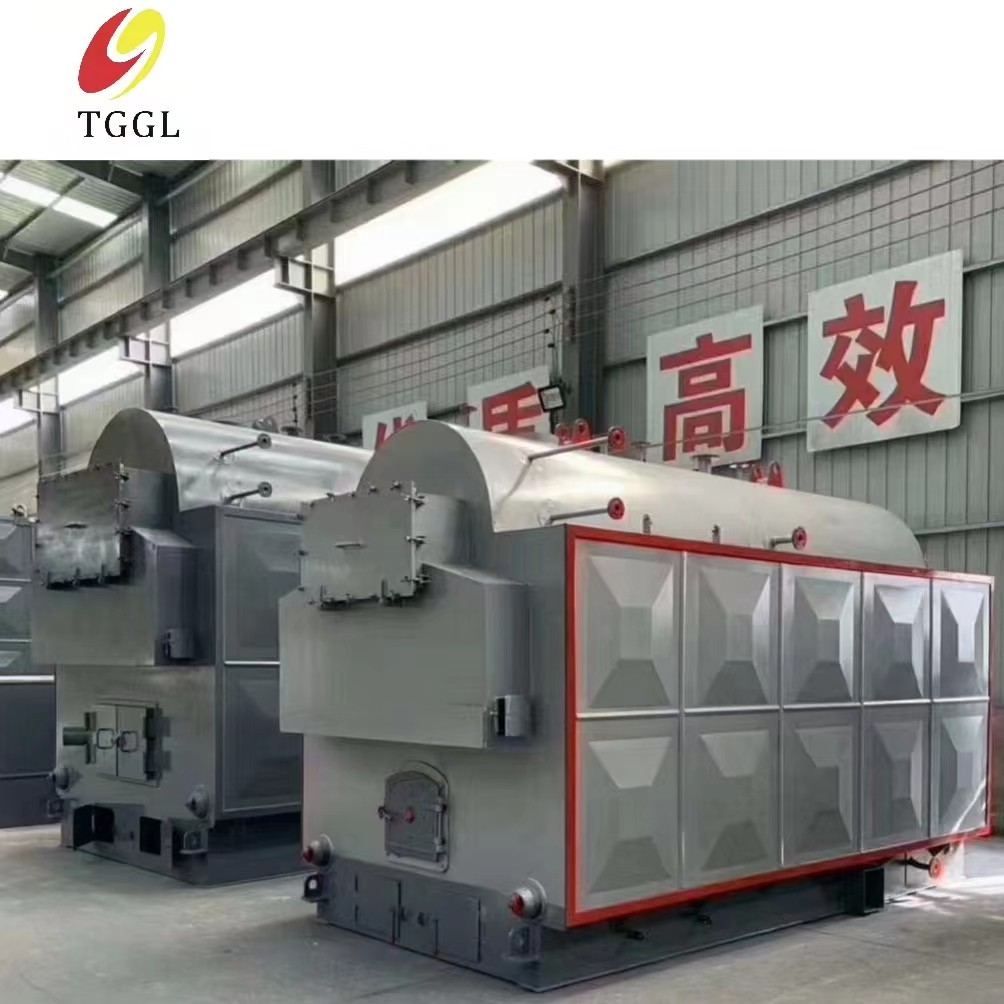

DZH Series Coal Fired Boiler Operation Manual 89% Efficiency Biomass Steam Boilers 0
