Fixed Grate Coal Fired Boiler Operation Manual 1.25Mpa 1.6Mpa Fast Installation

Fixed Grate Coal Fired Boiler Operation Manual 1.25Mpa 1.6Mpa Fast Installation

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 7800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Control System: PLC Temperature: 170、184、194、204
Capacity: 0.5-4t/h Efficiency: 89%
Type: Coal Fired Boiler Applicable Industry: Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Pressure: 0.7、1.0、1.25、1.6Mpa Installation: Pry Mounting, Quick Mounting
High Light:

Fixed Grate Coal Fired Boiler


Coal Fired Boiler Operation Manual 1.25Mpa


Fixed Grate Coal Fired Boiler 1.25Mpa

Product Description

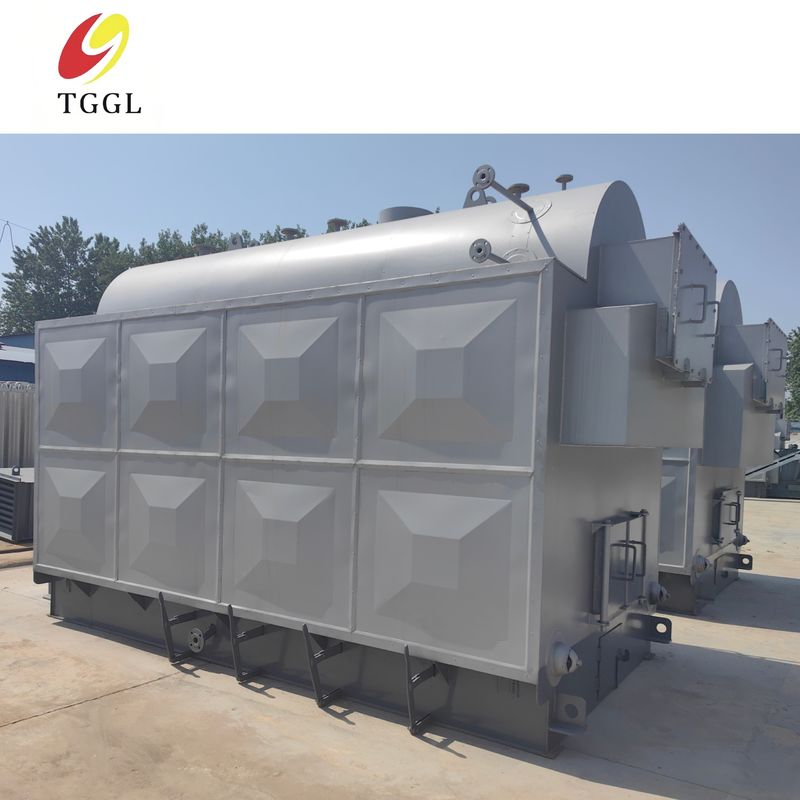

Fast installation of fixed grate coal-fired steam boiler building materials industry

Product Description:

DZH Biomass industrial steam boiler is designed to provide users with high yield and high quality steam. It is suitable for skid-mounted and quick-loading boilers with temperature of 170, 184, 194, 204 and pressure of 0.7, 1.0, 1.25, 1.6Mpa. This product is suitable for sea and land transportation. It is designed to make biomass grate boilers easier to operate and to improve safety and efficiency when in use. It can burn formed biomass fuel, or pure coal or mixed coal and formed biomass fuel. Compared with the traditional coal boiler, it not only has wide fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, so it has been widely used.


1) The pot barrel is composed of arch tube plate and threaded smoke pipe, so that the pot barrel changes from quasi-steel body to quasi-elastic structure, cancels the pulling member in the tube plate area and reduces the stress. The smoke pipe is changed from two return trips to one return trips, which solves the problem of tube plate crack.
(2) Due to the arrangement of the rising pipe row in the lower part of the drum, the dead water area at the bottom of the drum is eliminated, so that the mud is not easy to deposit, and the high temperature area of the drum can be well cooled to prevent the lower part of the boiler shell from bulging.
(3) The use of high efficiency heat transfer threaded smoke pipe, to obtain enhanced heat transfer effect, to achieve the boiler heating, pressure boost characteristics, improve the thermal efficiency of the boiler.

Technical Parameters:

Parameter Value
Efficiency 89%
Type Coal Fired Boiler
Fuel Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells
Control System PLC
Mode of transport Sea And Land Transport
Warranty 12 Months
Installation Pry Mounting, Quick Mounting
Capacity 0.5-4t/h
Pressure 0.7,1.0,1.25,1.6Mpa
Applicable industry Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Rated steam temperature 170184194204


The Taiguo DZH coal fired boiler is a biomass industrial grate boiler suitable for various industrial and commercial applications. The boiler uses high quality materials and components and is certified CE, EAC, SGS, ISO19001, ISO24001 and ISO45001. Capacity 0.5-4t/h. Its fuel includes biomass pellets, wood chips, bamboo chips, wood chips, straw, palm shells and so on. The pressure range is 0.7, 1.0, 1.25, 1.6Mpa.
DZH type coal-fired boiler is reliable and efficient. It is designed to deliver superior performance and is built with quality materials and components. Cost-effective, long service life. Suitable for any industrial and commercial applications such as chemical industry, light industry, paper making, printing and dyeing, building materials, clothing and leather industries.



Support and Services:

Coal boiler operation manual Technical support and service
This manual provides technical support and services for the operation of coal-fired boilers. It covers safety, installation, operation, maintenance and other important considerations.

Safety is a top priority when operating a coal-fired boiler. Follow all safety procedures and guidelines when using the boiler.

Make sure the boiler is properly installed according to the instructions provided in the manual. Proper installation will ensure safe and efficient operation.

Before use, check the boiler to make sure it is in good working condition. Please follow the instructions in the manual to perform the correct operation.

Regular maintenance is necessary to ensure safe and efficient operation. Keep the boiler in good working condition by following the maintenance instructions provided in the manual.



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
