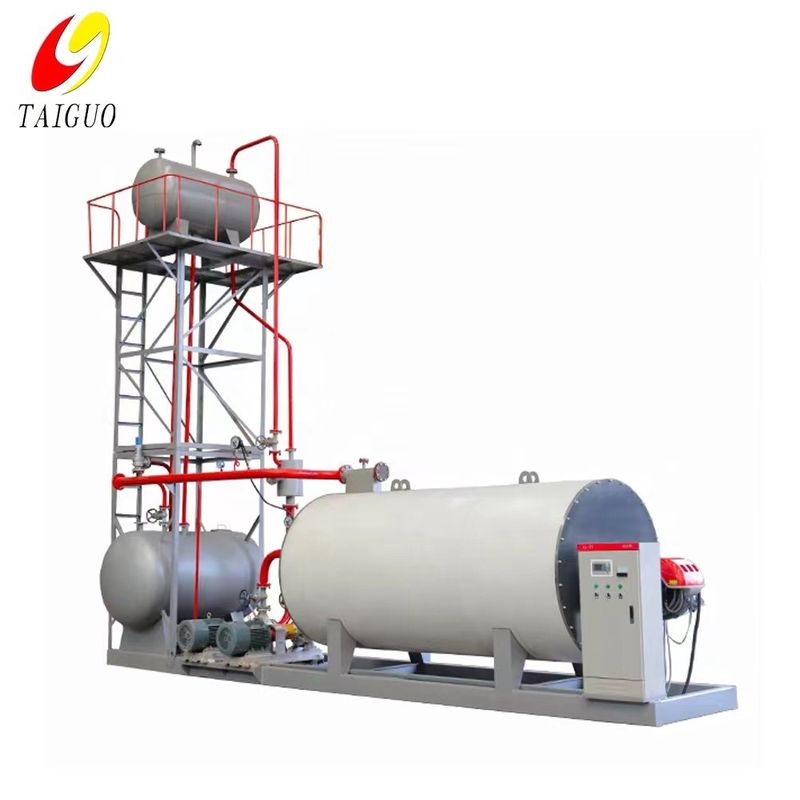

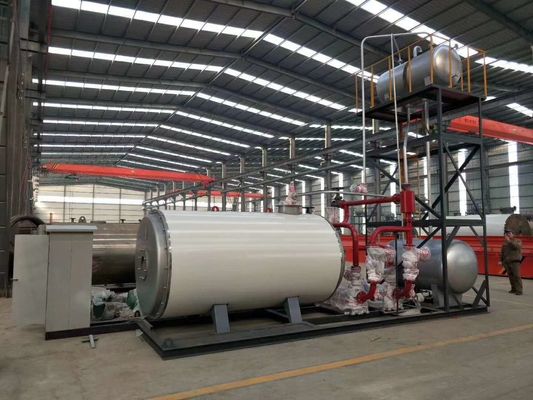

Customized Industrial 1400kw Hot Oil Boiler Thermal Fluid Heater Low Pressure

Customized Industrial 1400kw Hot Oil Boiler Thermal Fluid Heater Low Pressure

Product Details:

Place of Origin: HENAN
Brand Name: TAIGUO
Certification: EAC CE SGS
Model Number: YYQW-1400

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD5000-26500 Set
Packaging Details: Whole box packaging
Delivery Time: 15-25 days
Payment Terms: TT, D/A, L/C, D/P, T/T
Supply Ability: 100
Get Best Price Contact Now

Detail Information

Installation: Packaged/Site-assembled Capacity: Customized
Burner: Customized Structure: Horizontal/Vertical
Warranty: 1 Year Fuel: Oil/Gas
Design Temperature: 350℃-450℃
High Light:

Industrial 1400kw Hot Oil Boiler

,

1400kw Thermal Fluid Heater Low Pressure

,

Customized Industrial Thermal Fluid Heater

Product Description

Product Description:

Thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.

This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.

Features:

1. The flue gas three retures

2. Wet back structure

3. Compact coil tube

4. Multifunctional safety explosion-proof device



Technical Parameters:

Property Value
Type Thermal Oil Boiler
Design Temperature 350℃-450℃
Design Pressure 1.1MPa
Control Mode Automatic
Structure Horizontal/Vertical
Fuel Oil/Gas light oil/heavy/LNG/CG
After-sales Service Provided
Warranty 1 Year

Rated thermal power

1400kw
Thermal Efficiency 90%


Applications:

Thermal Oil Boiler TAIGUO YYQW Application
oil, petrochemical, textile, printing, plasticsrubber, fiber,  construction, cement, asphalt,metal, painting, wood processing, paper printing.nuclear industry, etc.
